Court Reiterates Principle of Patent Claim Interpretation (JMC Electronics Co., Ltd. v Chipbond Technology Corporation)
Date: 28 September 2022
【Volume 92】
Claim interpretation is the first and the most important step of determination on whether a patent is invalid or whether an infringement is constituted. Recently in JMC Electronics Co., Ltd. v Chipbond Technology Corporation, the patentee tried to, without amending the claim, interpret the claim with the technical features only disclosed in part of drawings, which was not accepted by the Taiwan court. The court reiterated that the basic principle of interpretation of claims shall be mainly based on the text of claims and shall not incorporate the content only disclosed in specification or drawings, or even only disclosed in some embodiments, but not described in claims.
Case Fact
JMC Electronics Co., Ltd. filed an invalidation action against the Taiwan invention patent No. I397963 “PRINTED WIRING BOARD, ITS PREPARATION AND CIRCUIT DEVICE” (“the ‘963 patent”) owned by Chipbond Technology Corporation (the patentee, the plaintiff). Taiwan IPO invalidated and revoked claims 3-8 of the ‘963 patent after examination. The patentee was dissatisfied with the decision, and filed an administrative litigation. In the end, the Taiwan Intellectual Property and Commercial Court dismissed this case and sustained the decision made by Taiwan IPO1.
Main technical features of the ‘963 patent and Exhibits
1. Technical features of the ‘963 patent:
The ‘963 patent provides a printed wiring board which rarely suffers occurrence of short-circuit attributable to migration, wherein the technical features of the claim 3 of the ‘963 patent include:
A: A printed wiring board
B: comprising an insulating film and a wiring pattern formed on at least one surface of the insulating film, said wiring pattern comprising a base metal layer formed on the insulating film surface and a conductive metal layer formed on a surface of the base metal layer,
C: said conductive metal layer having a bottom end portion and said base metal layer having a side end portion and a top end portion,
D: wherein the top end portion of the base metal layer viewed in section along the width of the wiring pattern protrudes out in the direction of width of the bottom end portion of the conductive metal layer deposited on the surface of base metal layer,

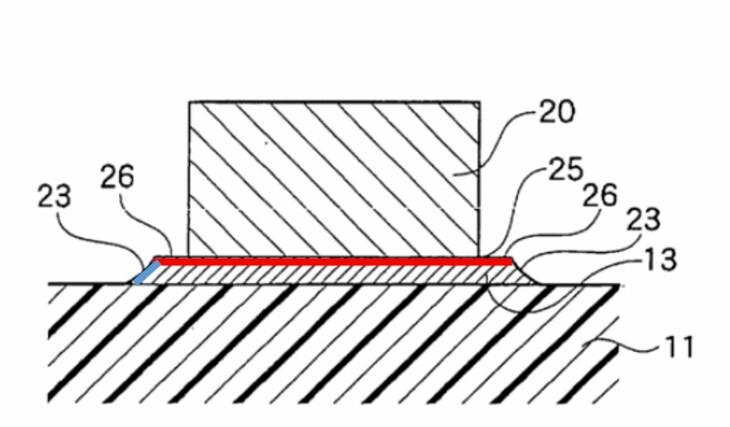

E: wherein at least part of the surface of the top end portion of the base metal layer protruding out in the direction of width of the wiring pattern is passivated. In addition, the following is Fig.6 of the ‘963 patent:
26: top end portion of base metal layer
23: side end portion of base metal layer
20: conductive metal layer
25: bottom end portion of conductive metal layer
13: base metal layer
11: insulating film
2. The technical features disclosed by the exhibits:
Exhibit 5 (JP2002-289650A) has disclosed the technical features A, B and C and Exhibit 4 (JP2003-188495A) has disclosed the technical feature E, which is not in dispute between the two parties.
However, with respect to the technical feature D of the claim 3 of the ‘963 patent, it is described in the paragraph [0025] of the specification of Exhibit 5 that “in Fig.1, first, a wiring pattern (Fig.1 (a)) comprising copper circuit 8 is formed by etching a copper foil 3 on the polyimide resin film 1 with a spattered nickel layer 2 between them. When etching the copper, because the copper is etched, part of the spattered nickel layer 2 under the copper circuit 8 remains at the side surface of the wire 8a, serving as protruding portion 2a.”
Fig.1(a) of Exhibit 5
Accordingly, the main issue of this case is that whether Exhibit 5 has disclosed the technical feature D, the “protruding”, in the claim 3 of the ‘963 patent.
Argument of the plaintiff
The plaintiff argued that the “protruding” in the claim 3 of the ‘963 patent should be interpreted as “combined structure of the ‘side end portion of base metal layer’ and the ‘top end portion of base metal layer’ protruding out in the direction of width of the conductive metal layer”, which is a specific protruding combined structure (platform structure), while the “protruding” described in Exhibit 5 is “metal residues without specific structure” after etching. They should not be confused with each other.
The opinion of the Intellectual Property and Commercial Court
- The “protruding” in the claim 3 is not specifically defined in the specification of the ‘963 patent. Referring to the specification and the figures of the ‘963 patent, it can be found that the conductive metal layer 20 is etched more and becomes thinner, while the base metal layer 13 is etched less, because the base metal layer 13 is less susceptible to etching than the conductive metal layer 20, which leads to the formation of the “protruding” structure. Thus, according to the specification and the figures of the ‘963 patent and the objective meaning of the text of the claim 3, the “protruding” should be interpreted as “when viewed in section along the width of the wiring pattern, the width of the top end portion of base metal layer is larger than that of the bottom end portion of conductive metal layer.”
- The plaintiff argued that the “side end portion of base metal layer” should be incorporated in interpretation of the “protruding”. However, the text of the claim 3 describes neither whether the side end portion protrudes out or not, how it protrudes out nor the features relationship between the top end portion and the side end portion, so the interpretation of the “protruding” structure should not involve the side end portion of base metal layer. Also, Fig 6 with the label “side end portion 23” is only one of the embodiments or specific examples of the ‘963 patent. When interpreting the claims, features drawn in figures cannot be used to limit the scope of the claims. Therefore, the argument of the plaintiff is inadmissible.
In summary, the claim 3 of the ‘963 patent can be easily made by a person ordinarily skilled in the art based on the combination of Exhibit 5 and Exhibit 4 and therefore lacks of inventive step.
Wisdom Suggested Strategies
According to the regulations in Taiwan, the extent of the protection conferred by an invention patent shall be determined by the claims, and the description and drawings may be considered as a reference when interpreting the claims. The content of claims cannot be interpreted as the specific embodiments or examples presented in the specification and the drawings merely. Embodiments or examples are only better ways or specific examples to realize the invention as the applicants believe. Accordingly, when the applicants do not further narrow down the scope of claims with specific features disclosed in specification or drawings and the text of claims is clear enough, features only disclosed in part of drawings and specific examples cannot be directly used to interpret claims.
In this case, the “protruding” structure of base metal layer drawn in Figs 1(g), 2(f), 5, 6 is only part of examples which cannot be directly used to limit the scope of claims. Besides, it cannot be directly or unambiguously deduced by a person ordinarily skilled in the art according to the description about the protruding structure and manufacture methods that the claimed printed wiring board must have the platform structure claimed by the patentee. Therefore, the interpretation for the “protruding structure” in the claim 3 of the patentee was not accepted by the court.
In summary, this case showed the importance of patent drafting again. The text of claims needs to be thought and considered cautiously. If the claim is drafted with too many features, the scope will be too narrow to prevent infringement. However, by contrast, too little limitation on the claims may lead to invalidation of the patent, as in this case, where the patentee failed to limit the interpretation of the claim without filing an amendment.
[1]2015 Xingzhuansuzi No. 32 Judgment of the Taiwan Intellectual Property and Commercial Court
